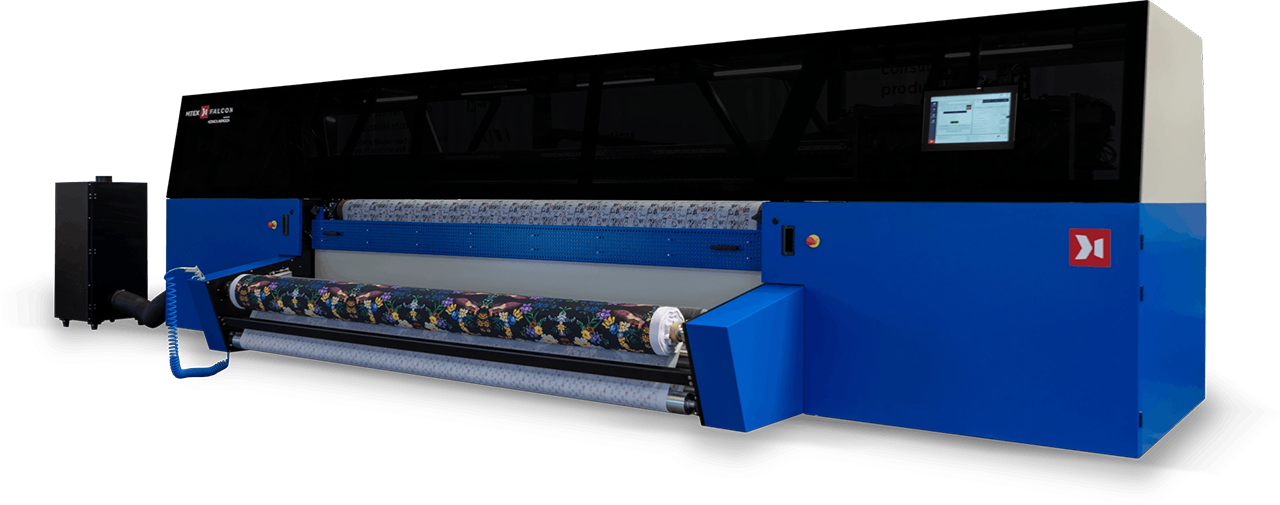

MTEX FALCON
Water-based organic pigment printer with a complete setup
Developed for wide format cotton and polycotton fabrics
Applications
Textile
Home / Linen / Upholstery
Staggered Heads
16
Quality Mode
720dpi
Production Mode
304 lm/h
Print Width
3.2m
What makes the FALCON special
Highest color consistency with sustainability at hand.
Flexibility
Handles small and big batches of printing jobs making it ready for both sampling and production.
Low TCO
Low maintenance and material consumption ensure you get the lowest cost per printed meter and a Total Cost of Ownership to match.
Modularity
Easy to access core machine modules and multiple customizations available: from 8 to 16 heads; 4 to 8 colors; Sublimation inks or pigments.
Uncompromising Quality
Innovative technology and sub ink enable fast and consistent printing onto thin transfer paper with life-like vibrant colors.
Speed Chart
16 heads / 4 colors
2 PASS
0
lm/h
360 x 720 dpi
4 PASS
0
lm/h
720 x 720 dpi
8 PASS
0
lm/h
720 x 1440 dpi
Printer Setup
Printer Details
Magnetic Linear Motor
Provides high acceleration / deceleration ratios with extremely high accuracy of 1mic, no maintenance, no gearbox or belts!
Printhead Control Technology developed and certified by MTEX
All electronics were specifically designed and integrated with MTEX firmware and software.
Designed and Engineered Degassing System
This allows the ink to be transported from the bottles to the print heads and only being degassed as close as possible to the print head.
8 bottle capacity, for 4/8 colors configuration
with 4 colors configuration, we can install 2 bottles per color and automatically switch from empty bottle to filled bottle on the fly.
Inbuilt pre-drying unit
Inbuilt pre-drying unit with zone control and tempersatures up to 150o Celsius
Extraction Unit
High Efficiency Particulate Air (HEPA) ensuring a clean working environment due to the filtration of dust particles.
MTEX FALCON
Developed for wide format cotton and polycotton fabrics.
DIMENSIONS
Height
2300 mm
Width
7250 mm
Depth
2250 mm
Weight
4500 Kg
FALCON Tech Specs | |
|---|---|
Head | Konica Minolta |
Head height | Adjustable 1.5 - 5 mm Z motor |
Fabric width | 3200 mm |
Resolution | From 360 up to 1440 dpi |
Drop size | Variable 3 / 11 / 16 pL |
Heating | 2 Gas fired burners |
Ink | Pigment |
Colours | 4 CMYK |
Temperature | 90 ºC to 180 ºC |
RIP | Open System |
Print Speed | 76 - 304 sqm/h |
Drying Speed | 0 - 320 sqm/h |
Machine power plug | CEE (3P+N+E) 63A |
Installation power plug | Socket CEE (3P+N+E) 63 A |
Machine main circuit protection | Differential switch 4 P, 40 A, 300 mA |
Circuit protection at installation (recommended) | Circuit breaker 4 P, 50 A |
Power consumption | 25 000 Watts |
Work pressure | 6 Ba - Airflow: 50 L/m |
